塑膠模具零配件>射梢類>雙節射梢(高速鋼)

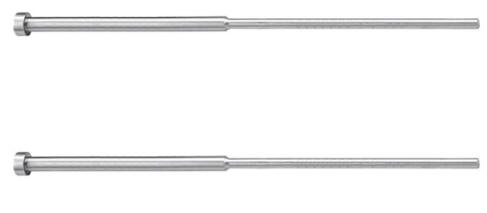

雙節射梢(高速鋼)(STRAIGHT
EJECTOR PINS-SKH51)
材質：SKH51
硬度：HRC60±
2

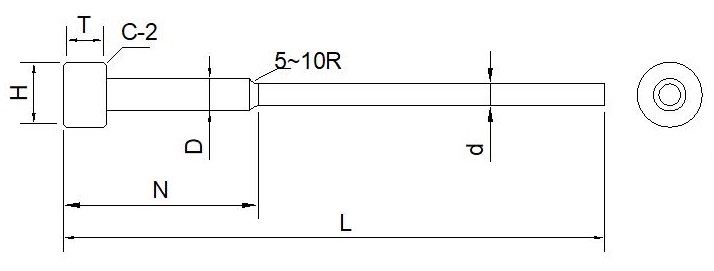

規格：雙節射梢(高速鋼)
|
稱呼 |
H+0
-0.3 |
T+0
-0.05 |
ØD-0.01
-0.02 |
Ød |
L+5(長度指定時+0.02)
+0.1(長度指定時-0) |
N+0
-5 |
|
SEJH |
3 |
4 |
0.8 |
0.40~0.70 |
100,150 |
N≧30 |
|
1 |
0.40~0.90 |
|
1.2 |
0.60~1.10 |
100,150,200 |
|
1.5 |
0.60~1.40 |
100,150,200,250 |
|
4 |
1.8 |
0.80~1.70 |
100,150,200 |
|
2 |
0.80~1.90 |
100,150,200,250 |
|
5 |
2.5 |
0.80~2.40 |
|
6 |
3 |
1.00~2.00 |
100,150,200
,250,300 |
|
7 |
3.5 |
1.50~3.40 |
|
4 |
1.50~3.90 |
|
9 |
4.5 |
2.50~4.40 |
|
5 |
3.00~4.90 |
|
10 |
5.5 |
3.50~5.40 |
|
6 |
4.00~5.90 |
|
11 |
6.5 |
4.50~6.40 |
150,200,250,300 |
|
7 |
4.90~6.90 |
|
13 |
8 |
5.90~7.90 |
|
14 |
9 |
6.90~8.90 |
|
15 |
10 |
7.90~9.90 |
|
16 |
11 |
8.90~10.90 |
|
17 |
12 |
8.90~11.90 |
訂貨方法：稱呼- ØDxdxNxL ×
數量
SEJH -3x2x50Nx100 ×﹝
﹞支
|
